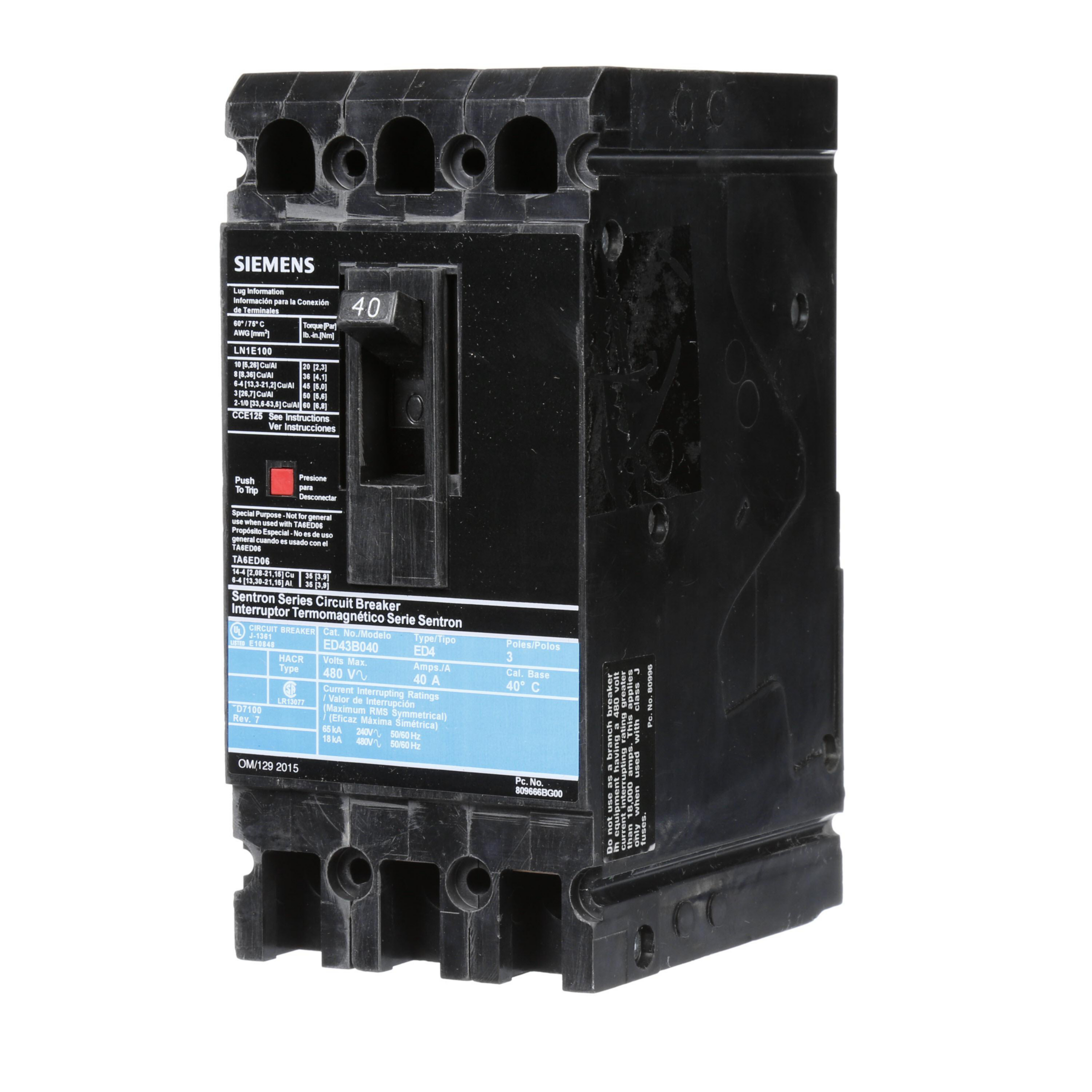

Breaker Sentron 3P 40A 480V typeED4-18KA

Manufacturer: Siemens Distribution | Catalog # ED43B040 | Electrozad South Part # 13500
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page
Molded case circuit breakers for ED125A frame sentron mounting are supplied with load side lugs in 1 type of tripping speed ED4=18KA. Available in version 1 pole 125vdc 120/277vac, 2 poles 250vdc 480vac, 3 poles 480vac.

Technical Information

Actuator
Varying
Applications
For Standard 40C Breaker
Enclosure
Varying
Frame
ED4
Interrupt Rating
18 kAIC
Load Rating
N/A
Number of Poles
3
Operating Temperature
40C
TC Connection
N/A
Temperature Rating
40 degrees C
Trip Range
N/A
Trip Type
Thermal Magnetic
Type
ED4

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643209411
GTIN
00783643209411
Weight
3.800 lb

Dimensions

Height
6.200 in
Length
7.350 in
Width
3.950 in

Certifications & Compliance

Country of Origin
Mexico
