NetKey Cat 5e Leadframe Jack, Int'l White - Pack of 25

Manufacturer: Panduit | Catalog # NK5E88MIW-Q | Electrozad South Part # 137708
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual

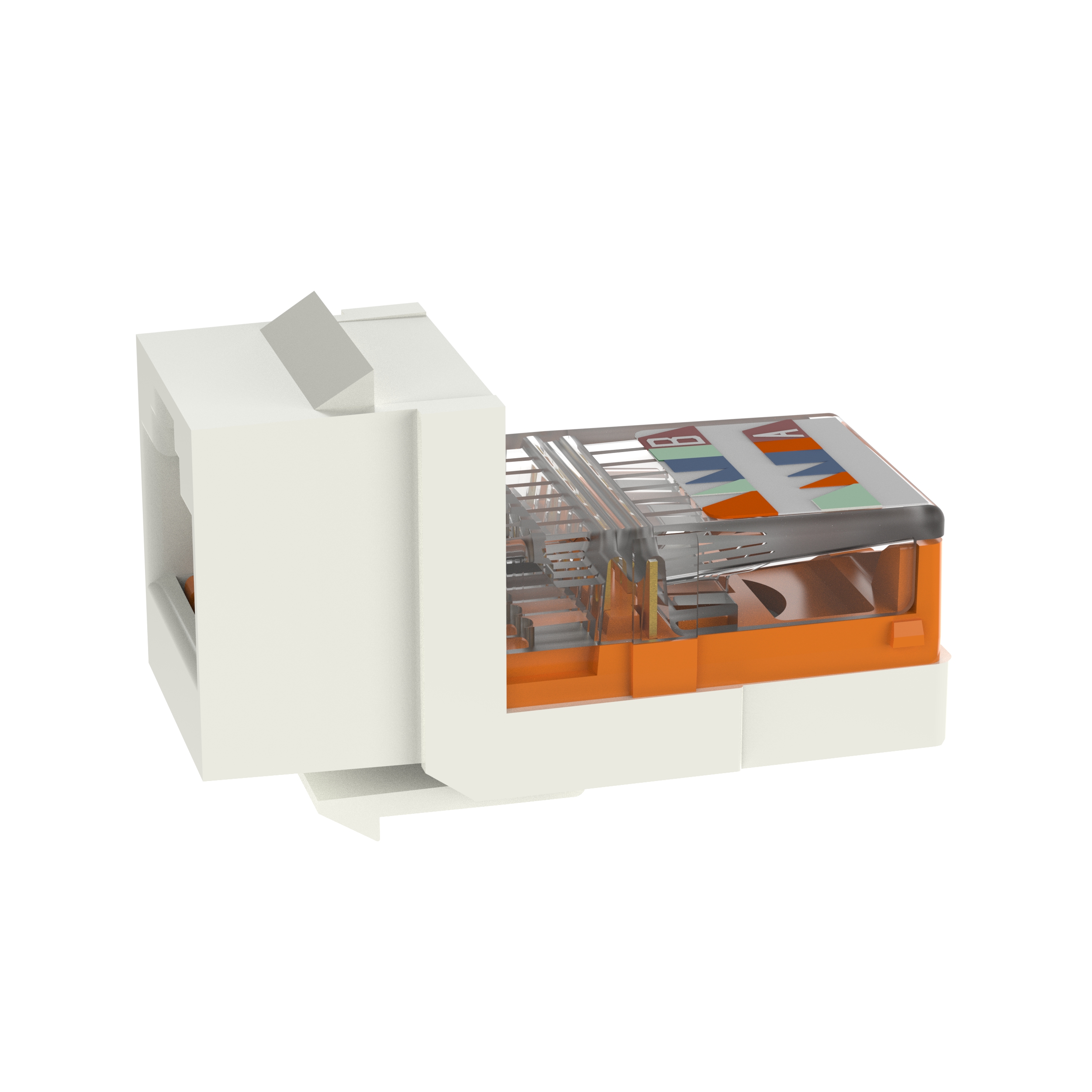

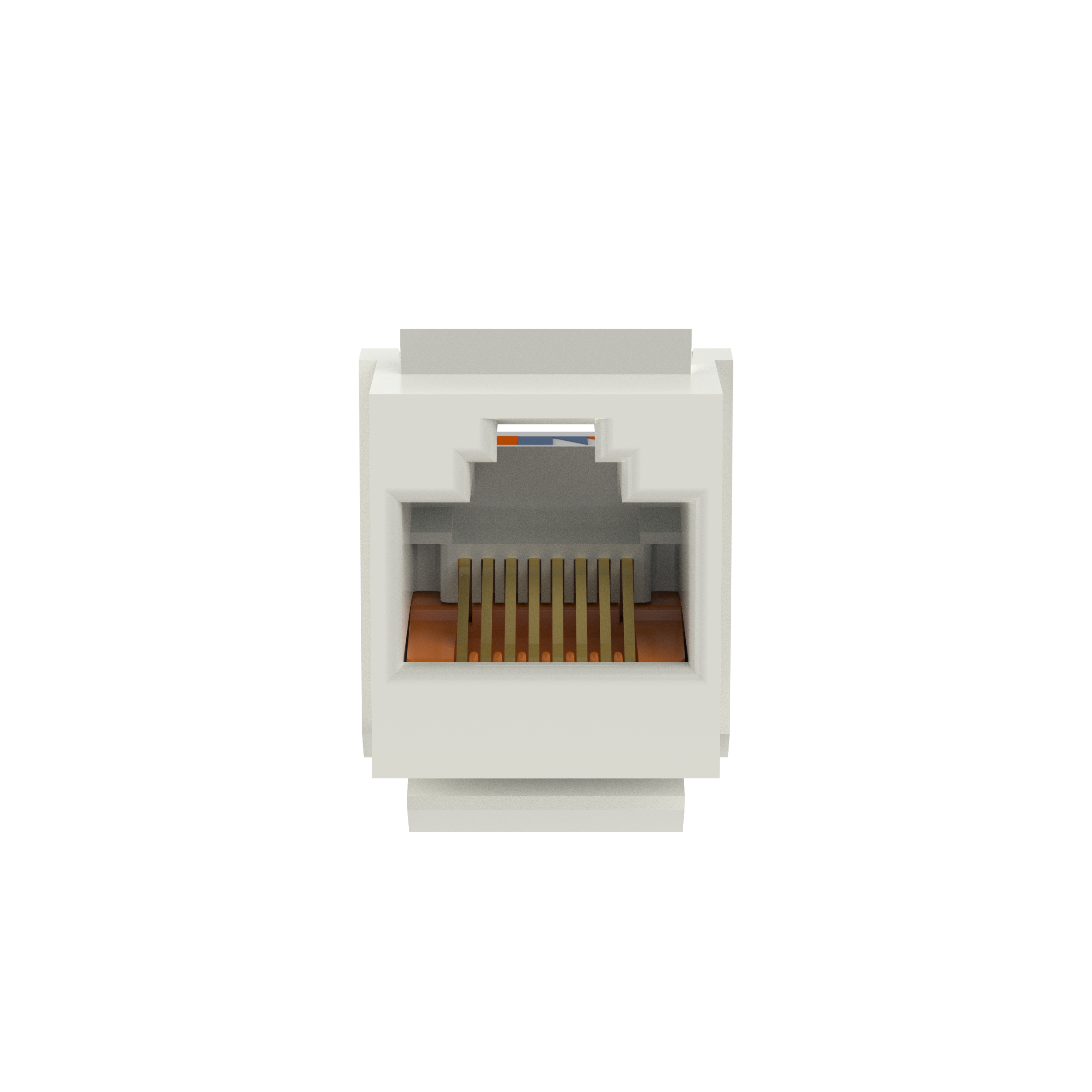

The NetKey® Cat 5e UTP RJ45 Leadframe Keystone Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with keystone interfaces including NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. This jack module is international white and includes 25 per package.

Technical Information

Applications
For 10BASE-T, 100BASE-T and 1000BASE-T Ethernet, 4/16 Token Ring, Voice Over Internet Protocol (VoIP)
Cable Size
24-22 AWG
Cable Type
Category 5e
Connection Type
Insulation Displacement
Material
ABS
Max Operating Temperature
149 degrees F
Minimum Operating Temperature
-10 degrees C
Module Type
Keystone
Mounting Type
Surface/Patch Panel/Faceplate
Number of Ports
1
Number of Positions
8
Performance Level
Category 5e/Class D
Temperature Rating
-10 to 65 degrees C
Type
8-Wire, Keystone, Unshielded

Manufacturer Information

Brand
Panduit
Sub Brand
NetKey

General Product Info

12-Digit UPC
074983717811
Color
Off-White
GTIN
00074983717811
Product Type
NetKey Copper
Used With
T568A/T568B Cable

Dimensions

Depth
1.37 in
Height
0.87 in
Overall Length
1.37 in
Width
0.65 in

Certifications & Compliance

ARRA Compliant
No
CE Compliant
No,No
Country of Origin
China
Hazmat Flag
No
