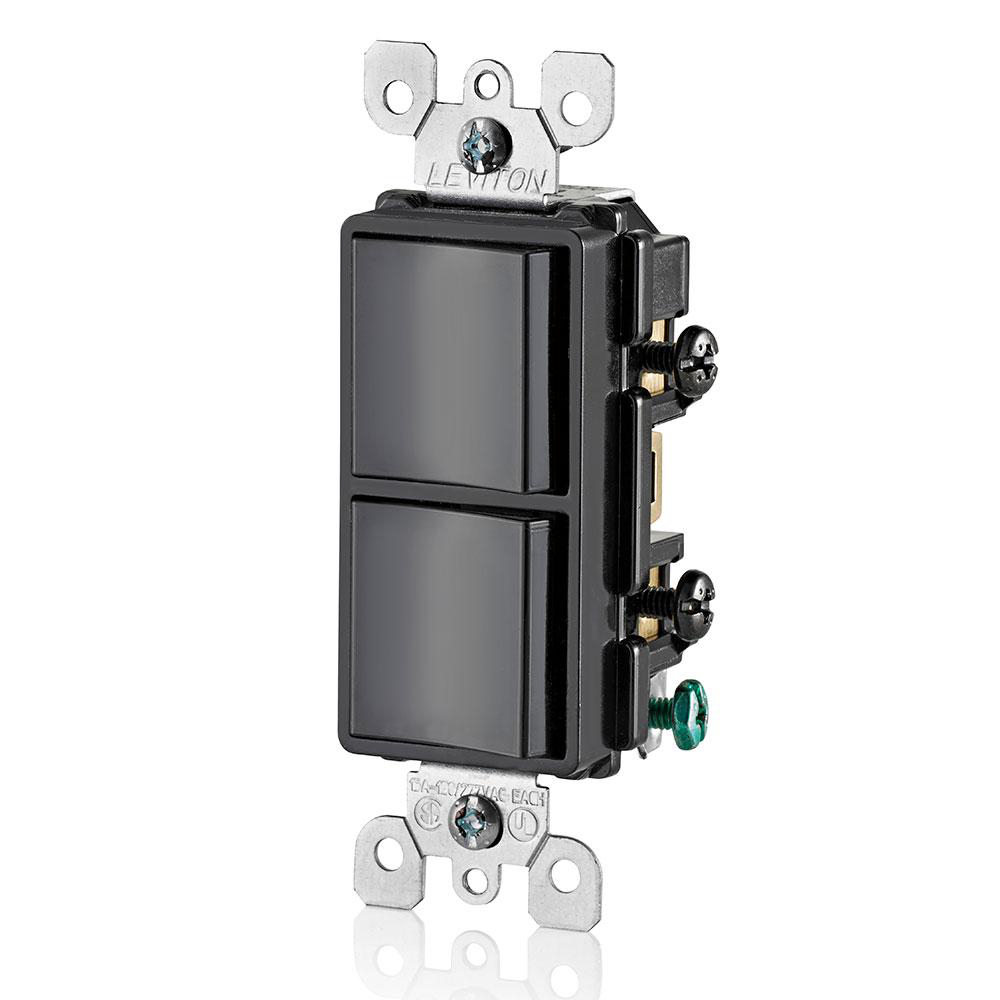

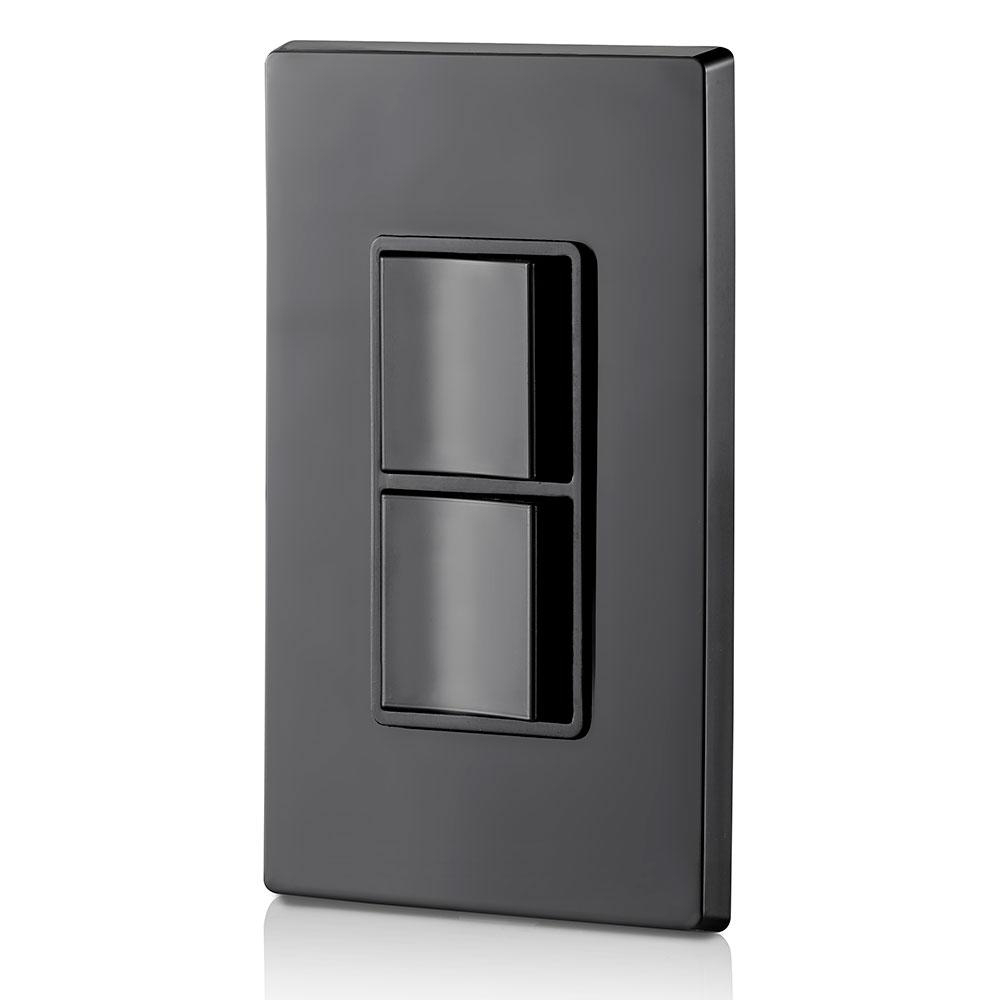

Switch combination 1-pole/3-way AC 120/277V 15AMP black

Manufacturer: Leviton Manufacturing | Catalog # 5641-E | Electrozad South Part # 200328
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet
Levitons Decora® combination switch is the perfect choice for any area in a home. Its simple, functional design allows you to save space wherever the switch is installed. Beautifully styled and part of the notable Decora® line, the switch comes in a variety of popular colors. Its impact-resistant exterior ensures damage protection and a long service life.

Technical Information

Actuator
Rocker
Amperage
12 A
Applications
Commercial
Body Material
Thermoplastic
Connection Type
Side Wired
Contact Rating
15 A at 120/277 VAC
Grade
Commercial,Residential
Grounding
Grounding
Horsepower
1/2 hp
Material
Thermoplastic, Steel Strap
Max Current
12 A
Mounting Type
Wallplate
NEMA
5-15R,5-15R
Number of Poles
1
Operating Temperature
-40 To 120 degrees C
Size
4.20 H x 1.31 W x 16 D IN
Standard
CSA,UL
TC Connection
Side Wired
Temperature Rating
-40 to 120 degrees C
Terminal Type
Screw
Termination Type
Side Wire
Torque
14 lb-in
Type
3-Way
Voltage
120/277 V

Manufacturer Information

Brand
Leviton
Sub Brand
DECORA COMBINATION DEVICES

General Product Info

12-Digit UPC
078477025048
Color
Black
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTIN
00078477025048
Product Type
2-Switch Combo

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
Mexico
