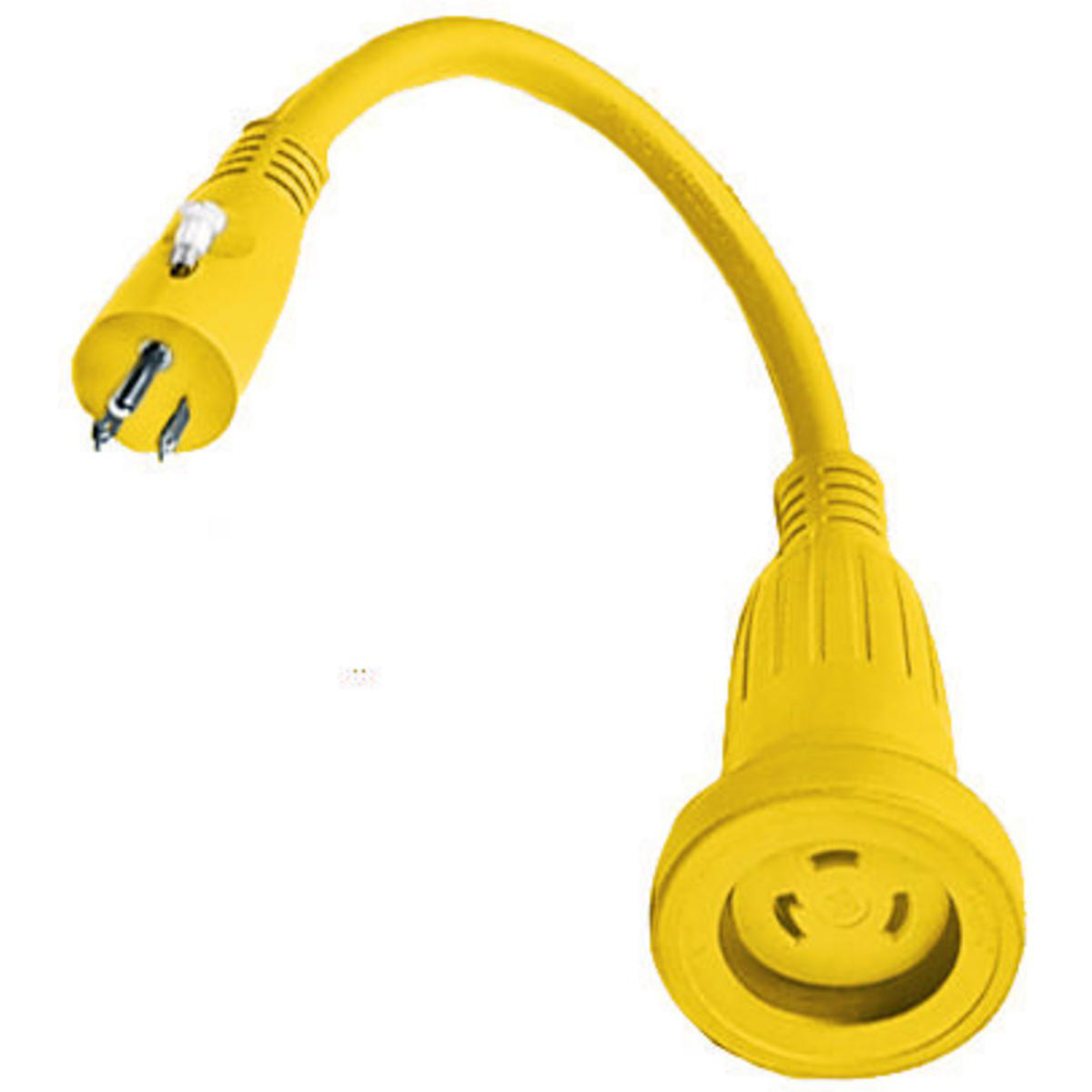

Adaptor straight 2-pole 3-wire male to female 15-20/30A 125V yellow

Manufacturer: Hubbell Wiring Devices | Catalog # HBL61CM22 | Electrozad South Part # 265811
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Manufacturer Warranty
Molded straight adaptor for cable set with straight blade receptacle. Anchor locking screw on plug when screwed down resists pull-out from the weight of the cable set. Permits use of 30 A, 125 V cable set with 15 or 20 A, 125 V straight blade receptacle. Anchor locking screw on plug when screwed down resists pull-out of the cable set.

Technical Information

Amperage
30 A
Applications
Straight Adapter
Current
30 A
Material
Composite
Number of Pins
Male- 15A 125V Straight Blade
Number of Poles
2
Operating Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Power Rating
3750 W
Temperature Rating
-40 to 75 degrees C
Type
2-Pole, 3-Wire, Straight Blade
Voltage
125 V
Wattage
3750 W
Wire Count
3

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Marine Wiring Products

General Product Info

12-Digit UPC
783585808598
Color
Yellow
GTIN
00783585808598
Weight
1.15 lb

Dimensions

Height
3 in
Length
7.500 in
Width
6.800 in

Certifications & Compliance

Country of Origin
China
