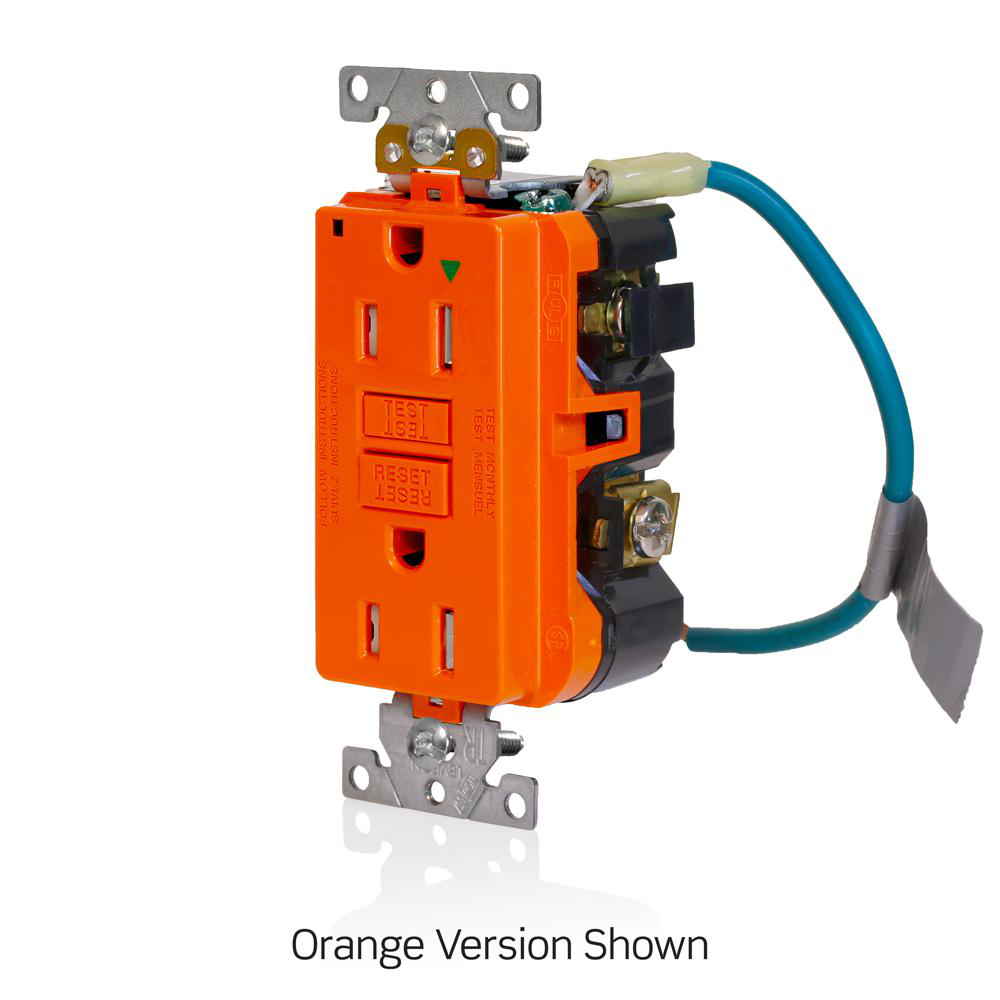

Receptacle GFCI industrial grade isolated ground 15A 125V orange

Manufacturer: Leviton Manufacturing | Catalog # GFTR1-IGO | Electrozad South Part # 283262
*Call For Price*
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet
SmartlockPro® Extra-heavy duty industrial grade self-test GFCI isolated ground receptacle. NEMA 5-20R without wallplate. Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles; no power will be delivered to receptacle face if improperly wired (line-load reversed). Improved immunity to high frequency noise reduces nuisance tripping. Advanced electronics provides superior resistance to electrical surges and over-voltages. Low-profile design is easy to install in all electrical boxes.

Technical Information

Amperage
15 A
Applications
For Extra-Heavy Duty Industrial Grade
Body Material
Polycarbonate
Device Type
Duplex Receptacle Outlet
Enclosure
WD-6
Face Material
PBT
Flamability Class
Rated V-0 Per UL 94
Grade
Industrial
Grounding
Self-Grounding
Horsepower
1 hp
Material
Polycarbonate/PBT
NEMA
WD-1
Number of Poles
2
Number of Wires
3
Operating Temperature
66 degrees C
Short Circuit Current
10 kA
Standard
ANSI C-73,CSA C22.2 No. 42 & 144,FedSpec W-C-596,UL 498,UL 943
Temperature Rating
-35 degrees C to 66 degrees C
Termination Type
Back Wire,Side Wire
Type
Self-Test
Voltage
125 V
Wire Count
3

Manufacturer Information

Brand
Leviton
Sub Brand
Smart-Lock Pro

General Product Info

12-Digit UPC
078477724002
Color
Orange
GTIN
00078477724002

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Certifications
CSA,NOM-ANCE,UL
Country of Origin
China
