Pole power steel grey 10.4'x0.03"

Manufacturer: Wiremold | Legrand | Catalog # 25DTP-4DG | Electrozad South Part # 417035
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual Technical Drawing Manufacturer Warranty

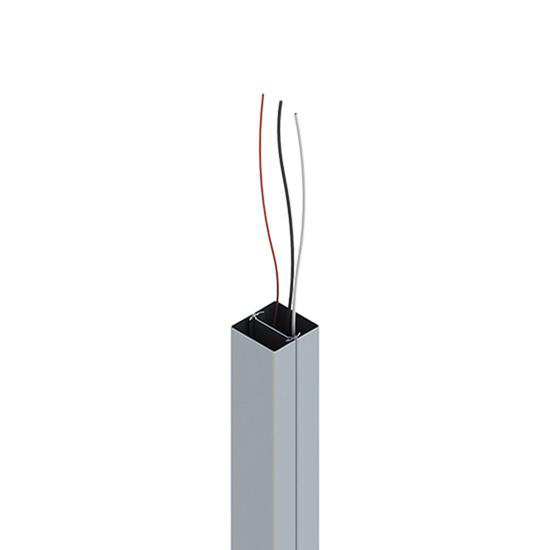

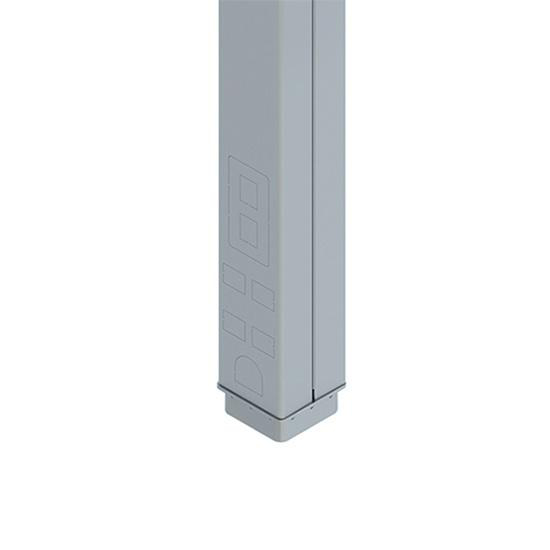

Steel Tele-Power® Pole. Two compartment pole (power and communications). Nominal material thickness 0.03 inch. Ivory or grey boot base. Factory wired with fed-spec general grade 20 A, 125 V duplex style receptacles. An 8 inch cover at top front of pole is removable for making power wiring connections. knockouts provided in removable cover for RJ11/RJ45 and modular furniture communication connectors.

Technical Information

Applications
Commercial, Office
Conductor Size
12 AWG
Cutout
A/V,Data,Keystone,Receptacle
Enclosure
Steel
Material
Steel
Mounting Type
Stand (Base)
Type
Rectangular, 2 Duplex
Wire Size
#12 AWG solid type THHN conductors

Manufacturer Information

Brand
Wiremold
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786776193350
Color
Designer Gray
Finish
Painted
GTIN
00786776193350
Product Series
Steel Tele-Power
Weight
20.5 lb

Dimensions

Depth
13-5/16 in
Height
125.98 in
Length
10.416 ft
Thickness
0.03 in
Warranty Length
1-Year From Installation Or 2-Years From Day Of Sale
Width
13-1/4 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Certifications
CULUS,NAFTA,ROHS
Country of Origin
USA
